Rotating laser hedue S3 in systainer with receiver E3

Digital tilt laser with USB connection and Li-Ion battery.

Mögliche Liefertermine	Ihr Preis

Digital adjustment of the tilt (tilt laser).
With the hedue S3 rotating laser, you can preselect the desired percentage value of the tilt in the display. The servomotors then automatically tilt the axis to this inclination. You can tilt both the X-axis and the Y-axis, up to 10% each. You can tilt both axes together up to a total of 13%.

Two tripod threads.
The hedue S3 rotating laser has one tripod thread each for horizontal and vertical use on a tripod.

QR code on the device.
The robust construction laser hedue S3 is precise with a leveling accuracy of 1 mm on 10 m. You can rely on this, because we at hedue in Germany calibrate every rotary laser before delivery. You can retrieve the certificate via the QR code stuck to the device.

Energy for an entire work week.
The hedue S3 rotating laser receives power from an 8,800 mAh Li-Ion battery pack. This is enough for a runtime of 60 hours and can be recharged via the USB port.

Simple operation.
This rotating laser has radically simplified operation. There are only three buttons on the construction laser itself: on/off, anti-shake and a button for selecting the laser class. Only with the remote control additional functions are provided. So it is possible to let an occasional user use the device without the remote control. You then have the security of knowing that the device can only be operated in the self-leveling rotation. Incorrect measurements caused by incorrect operation are then excluded.

Accessories
Spare parts
Warranty / Months : 24
repair at a flat rate of 189,00 €
bei Sturzschaden oder nach Ablauf der Garantie.
Calibration to a firm price of 39,00 €

Features

Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical.
Rainproof housing.
Tracking of laser lines with the line function S2/S3.
Switch from rotation at 600 rpm to the scan function with 10°, 25° or 50° opening angle. In the interior you have a clearly visible laser line, which you can direct with the arrow keys to the left or right.

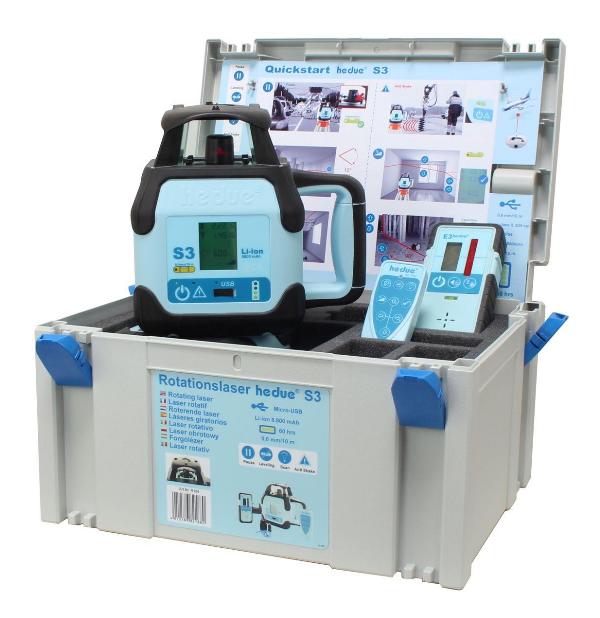

Delivery in the transport and storage system Systainer. Includes laser receiver with bracket, remote control, USB charging cable and USB charger.
Can be used on tripods and wall mounts with 5/8" thread.
Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
The devices are individually tested and delivered with a calibration certificate.
Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy.
Working in bright light and over long distances in conjunction with laser receivers.
Usable without safety restrictions thanks to the harmless laser class II.
Due to legal regulations, users of laser class 3R and above must be specially trained. Among other things, the work area must be specially marked and secured against access.
Additional reference beam
The reference beam is exactly at a 90° angle to the rotating laser beam. This laser beam can be used for plumbing or aligning walls.

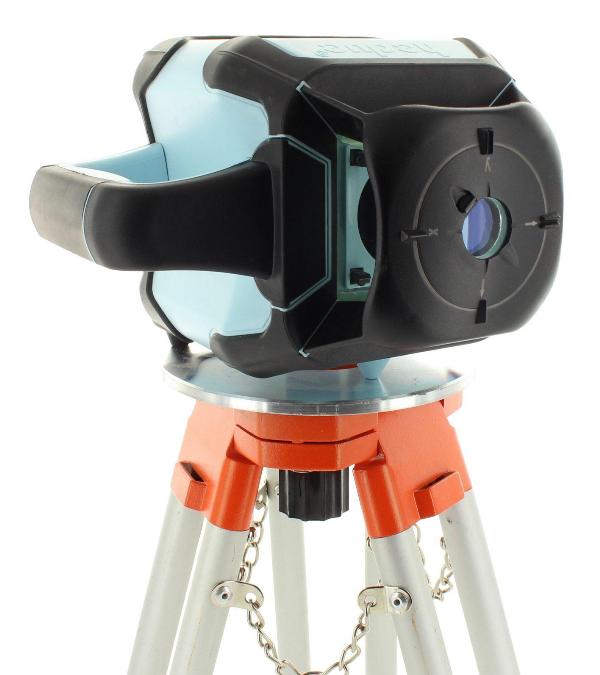

Tripod thread horizontal and vertical.
With the two 5/8" threaded sockets, at the bottom and back of the device, you can mount the construction laser both horizontally and vertically on a Bautripod.
Fast and exact alignment via the sighting device.
The aiming device allows you to precisely align the construction laser in alignment.
Quiet belt drive that is gentle on the material.
The rotary laser is driven by an efficient belt drive. Compared to conventional gear drives, this is more gentle on materials and much quieter.

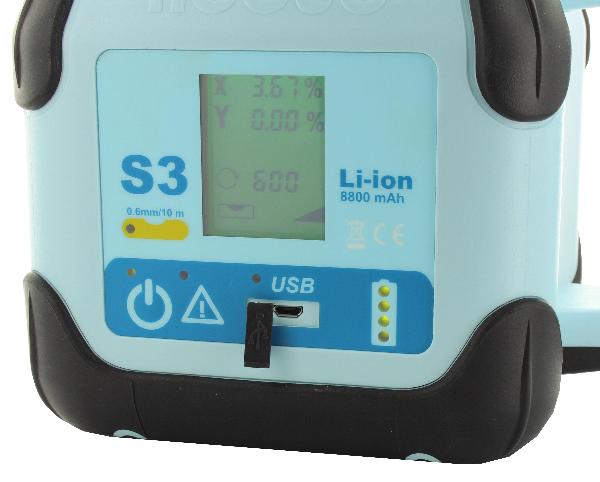

With charge level indicator.

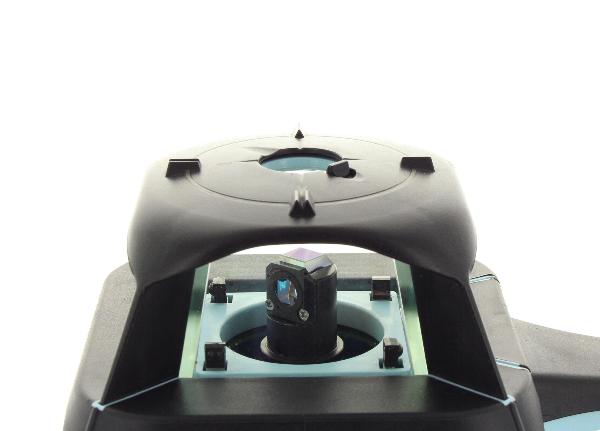

Increased protection through the integrated laser head cover.
The plumb beam is not always needed. Therefore, you can close the upper exit window with a slider. This prevents the uncontrolled radiation of the plumb bob.
Long operating time thanks to integrated Li-Ion battery.
The lithium-ion battery has a high energy density, is thermally stable and has practically no memory effect. It is the ideal battery for your everyday life on the construction site. Apart from the short charging times, the long service life is another argument in favour of this battery.

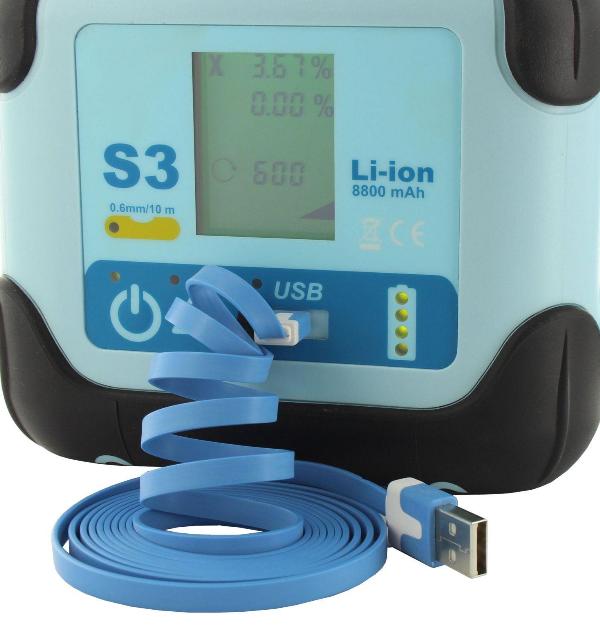

Flexibility in charging thanks to micro USB charging socket.
A micro-USB port is now found in many devices, such as smartphones, eBooks and laser rangefinders. This technology is both ecological and economical. Because the interchangeability of chargers protects the environment and your wallet. You will also be able to charge your device independently of when and where you charge it.
Digital inclination of the X and Y axis with percentage setting.
