356,00 €
Recommended retail price without VAT.
Article No. R141
Find a dealer

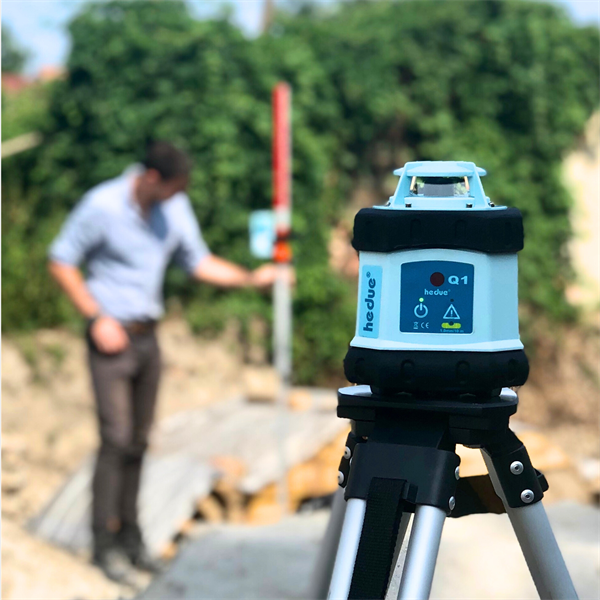

Rotary laser hedue Q1 in case
Self-leveling rotating laser with standard batteries and test certificate. For all horizontal leveling work.
QR code on the device.
The compact hedue Q1 construction laser is precise with a leveling accuracy of 1 mm at 10 m. You can rely on this, because we at hedue in Germany calibrate every rotary laser before delivery. You can retrieve the certificate via the QR code stuck to the device.
Rechargeable standard batteries!
The hedue Q1 rotating laser is powered by four rechargeable AA batteries. The battery compartment is easy to open, and the batteries are easy to remove. With the external charger (included) you can recharge the batteries. Also, remove the batteries if you do not use the construction laser for a long period of time, This will protect the valuable electronics from being damaged by leaking batteries.
Simple operation.
This rotary laser has radically simplified operation. There are only two buttons on the construction laser itself: on/off and anti-shake. Only the remote control provides additional functions. So it is possible to leave the device to an occasional user without remote control. You then have the security of knowing that the device can only be operated in the self-leveling rotation. Incorrect measurements caused by incorrect operation are then excluded.
Features
- Rainproof housing.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Display of slopes by switching off the self-levelling function.
- Can be used on tripods and wall mounts with 5/8" thread.
- Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
The devices are individually tested and delivered with a calibration certificate. - Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy. - Working in bright light and over long distances in conjunction with laser receivers.
- Horizontal self-levelling by servomotors up to 5° inclination.
- Rotary laser in wooden case with batteries, charger, remote control and laser receiver with holder.
- Easily accessible battery compartment and powered by standard batteries.
Video
Specifications
|
|
Working area with laser receiver
|
500 m
|
|
|
Self-levelling range horizontal
|
5°
|
|
|
Levelling accuracy
|
1 mm / 10 m
|
|
|
Opening angle of the line function
|
10°, 25°, 50°
|
|
|
Remote control reception range
|
20 m, 360°
|
|
|
Operating time in hours
|
10
|
|
|
Operating temperature
|
-10°C - +45°C
|
Scope of Delivery
- Suitcase
- Test certificate
- Laser detector hedue E2
- Remote control
- Batteries Alkaline
- Battery charger
- QuickstArt
Horizontal self-levelling by servomotors up to 5° inclination.
Rotary laser in wooden case with batteries, charger, remote control and laser receiver with holder.
Easily accessible battery compartment and powered by standard batteries.
Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
Display of slopes by switching off the self-levelling function.
