Rotary laser hedue Q2
Battery-powered and self-levelling rotating laser with 11-key control panel and reference beam.
Automatic horizontal and vertical levelling by servomotors
The hedue Q2 rotating laser can automatically compensate for a slope of up to 5°. The servo motors bring the laser beam into the exact horizontal or vertical position even if the construction laser is on an inclined plane.
QR code on the device.
The robust construction laser hedue Q2 is precise with a leveling accuracy of 1 mm over 10 m. You can rely on this, because we at hedue in Germany calibrate every rotating laser before delivery. You can retrieve the certificate via the QR code stuck to the device.
Enough power for long working days.
The hedue Q2 rotary laser is powered by four standard C/LR14 batteries. These are sufficient for a runtime of 20 hours. The battery compartment is easy to open and the batteries are easy to change. Remove the batteries even if you do not use the construction laser for a longer period of time, thus protecting the valuable electronics from being damaged by leaking batteries.
Control panel with 11 keys on the device.
All functions of the hedue Q2 rotary laser can be controlled both on the unit and via the remote control.
Additional reference beam.
The reference beam is exactly at a 90° angle to the rotating laser beam. This laser beam can be used for plumbing or aligning walls.
Features

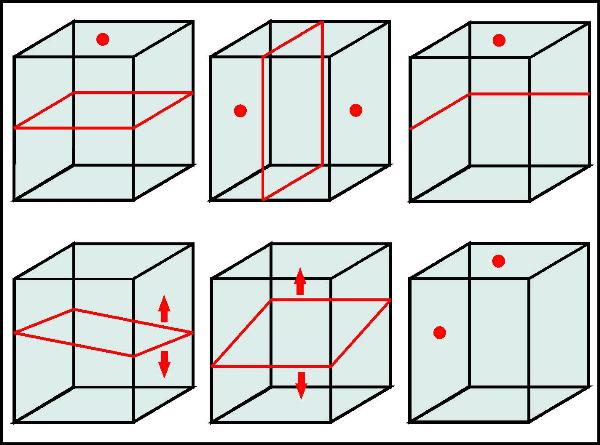

- Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Rainproof housing.

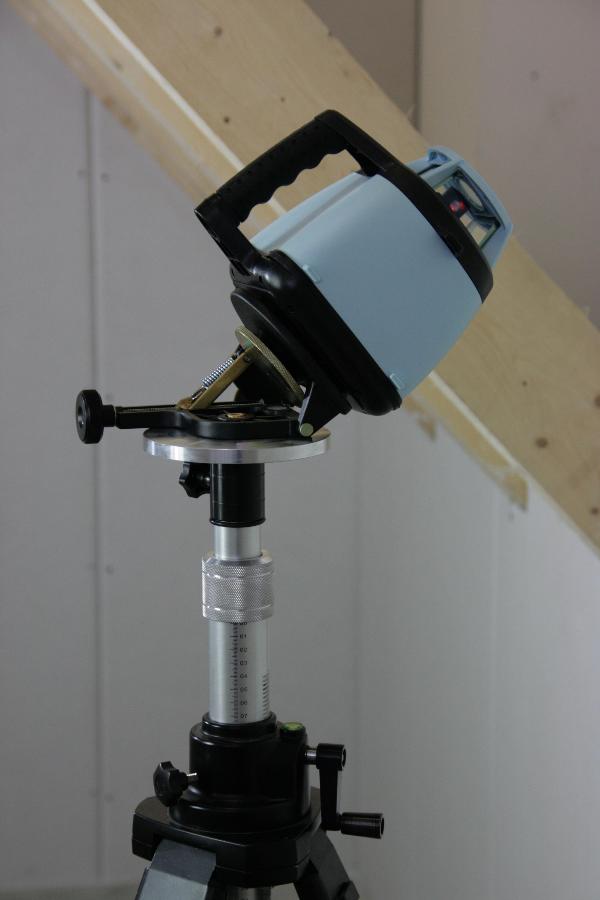

- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Display of slopes by switching off the self-levelling function.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Can be used on tripods and wall mounts with 5/8" thread.
- Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)

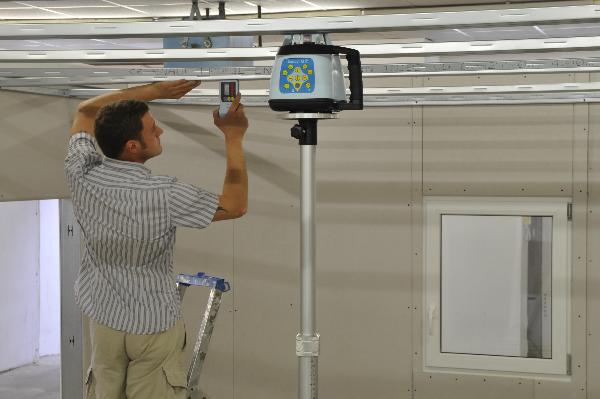

The devices are individually tested and delivered with a calibration certificate. - Working in bright light and over long distances in conjunction with laser receivers.
- Usable without safety restrictions thanks to the harmless laser class II.
Due to legal regulations, users of laser class 3R and above must be specially trained. Among other things, the work area must be specially marked and secured against access. - Tracking of laser lines and laser points.
- Better visibility of the laser line through the adjustable rotation speed.
- Additional reference beam
The reference beam is exactly at a 90° angle to the rotating laser beam. This laser beam can be used for plumbing or aligning walls.
Video
Specifications
|
|
Working area with laser receiver
|
500 m
|
|
|
Self-levelling range horizontal
|
5°
|
|
|
Vertical self-levelling range
|
5°
|
|
|
Levelling accuracy
|
1 mm / 10 m
|
|
|
Rotation speeds rpm
|
0, 60, 120, 300, 600
|
|
|
Remote control reception range
|
20 m, 360°
|
|
|
Operating time in hours
|
> 20
|
|
|
Operating temperature
|
-20°C - +50°C
|

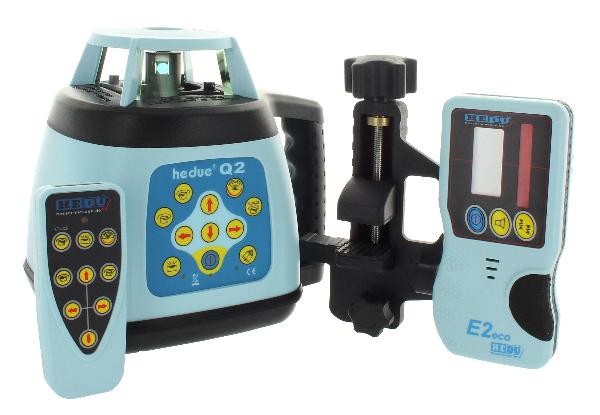

Scope of Delivery
- Suitcase
- Test certificate
- Laser Receiver hedue E2
- Remote control
- Batteries Alkaline
- Operating instructions
Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
Manual tilting of the X and Y axis.
Working in bright light and over long distances in conjunction with laser receivers.
Display of slopes by switching off the self-levelling function.
Horizontal self-levelling by servomotors up to 5° inclination.
