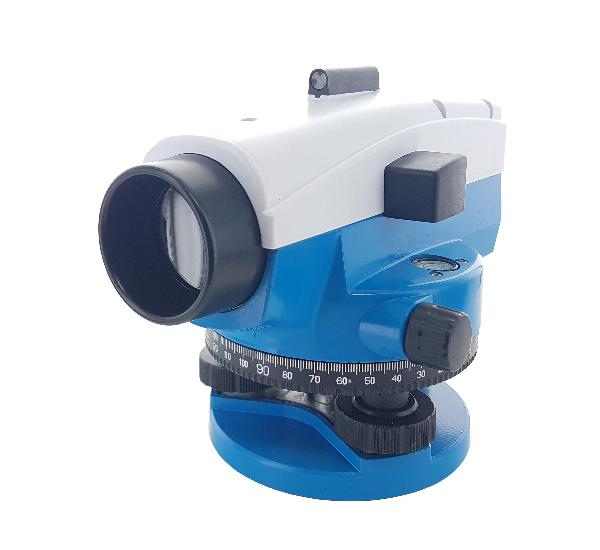

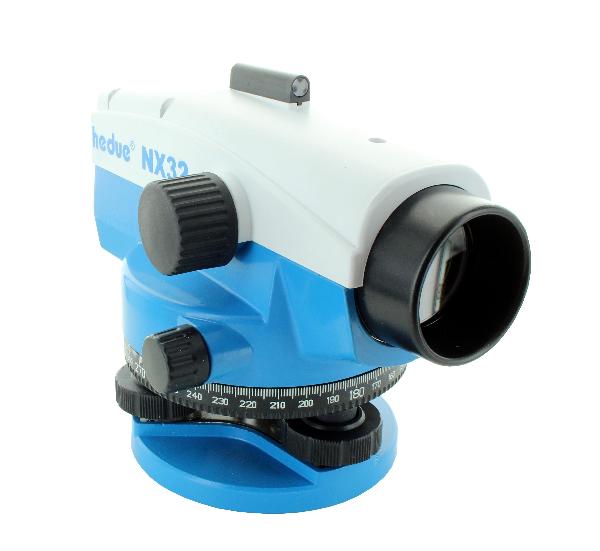

Level hedue NX32
Automatic construction level for measuring height differences and angles

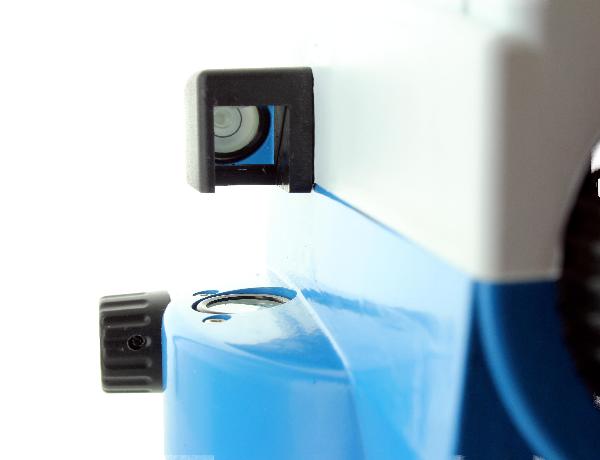

Thanks to the high-quality, magnetically damped compensator, the optical level automatically adjusts itself to the horizontal. In advance, only the rough alignment of the level by means of the circular bubble is necessary, which can be read off comfortably via the mirror sight.

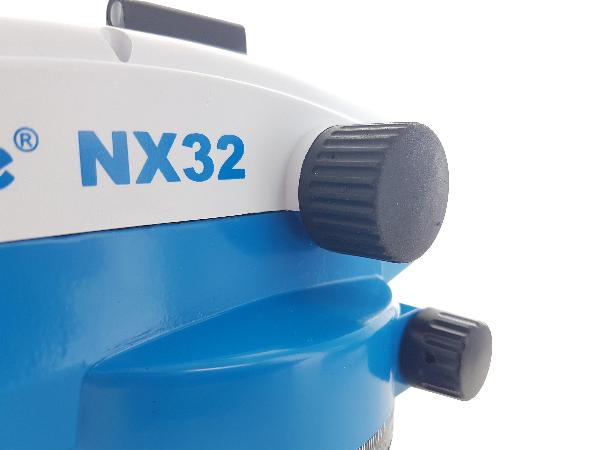

Levelling staffs or metre rulers can be easily read through the telescope. The circle division also allows the setting of angles in the terrain. It is optimally controlled by the lateral fine drive. The fine drive also makes it easier for you to adjust the reading mark precisely to the target.
The eyepiece and the focusing screws provide you with optimum contrast and the necessary image sharpness for error-free reading of measurement results.
Features
- Automatic horizontal alignment with the magnetic damped compensator.
- Easy setup via the mirror sight.
- Fast and exact aiming with the lateral fine drive.
- Easy reading with 32x magnification.
Video
Specifications
|
|
Shortest target distance
|
0,4 m
|
|
|
Standard deviation for 1km double levelling
|
1,5 mm
|
|
|
Objective lens diameter
|
36 mm
|
|
|
Compensator Working range
|
+/- 15´
|
|
|
Recording accuracy
|
+/- 0,3"
|
|
|
Sensitivity of the spirit level
|
8´/2 mm
|
Scope of Delivery
- Suitcase
- Adjusting needle
- Plumb line
- Allen key
