Level hedue NX32
Automatic construction level for measuring height differences and angles
Thanks to the high-quality and magnetically damped compensator, the optical level automatically adjusts itself to the horizontal. Beforehand, only the rough alignment of the level is necessary by means of the circular bubble, which can be conveniently read via the mirror sight.
Levelling rods or meter sticks can be easily read through the telescope. The circular graduation also allows you to mark out angles in the field. It is optimally controlled by the lateral fine drive. The fine drive also makes it easier for you to precisely set the reading mark on the target.
The eyepiece and the focusing screws provide you with optimum contrast and the necessary image sharpness to read off measurement results without errors.
Features
- Automatic horizontal alignment with the magnetic damped compensator.

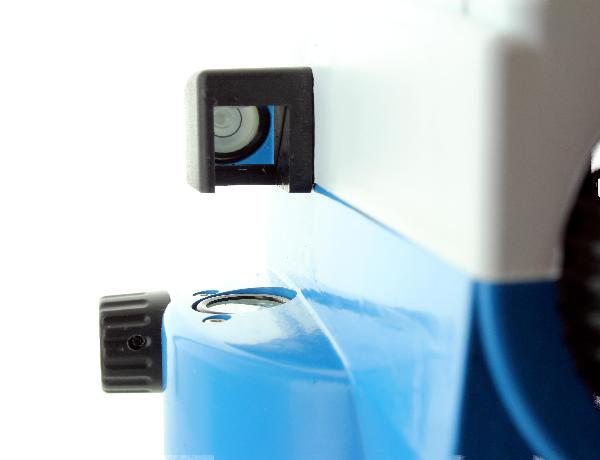

- Easy setup via the mirror sight.
- Fast and exact aiming with the lateral fine drive.
- Easy reading with 32x magnification.
Video
Specifications
|
Shortest target distance
|
0,4 m
|
|
Standard deviation for 1km double levelling
|
1,5 mm
|
|
Objective lens diameter
|
36 mm
|
|
Compensator Working range
|
+/- 15´
|
|
Recording accuracy
|
+/- 0,3"
|
|
Sensitivity of the spirit level
|
8´/2 mm
|
Scope of Delivery
- Suitcase
- Adjusting needle
- Plumb line
- Allen key
