Article No. R157
Find a dealer
Rotating laser hedue R1 with laser detector E3
2009 - 2018
With energy-saving button for extra long battery runtimes
A fully automatic horizontal laser with energy-saving button for long battery runtimes. Pressing the energy-saving button puts the hedue R1 rotating laser into a sleep mode. The largest power consumers, rotation and laser diode, are switched off. The level monitoring, however, remains active. Pressing the power save button again wakes up the R1 and starts rotation and laser diode.
With the powerful laser detector, the hedue R1 reaches a working range of 500 m. With the standard remote control you control all important functions and you also have the possibility to tilt the X- and Y-axis up to 5°.
Features
- Usable without safety restrictions thanks to the harmless laser class II.
Due to legal regulations, users of laser class 3R and above must be specially trained. Among other things, the work area must be specially marked and secured against access. - Horizontal self-levelling by servomotors up to 5° inclination.
- Can be used on tripods and wall mounts with 5/8" thread.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Rainproof housing.
- Tracking of laser lines and laser points.

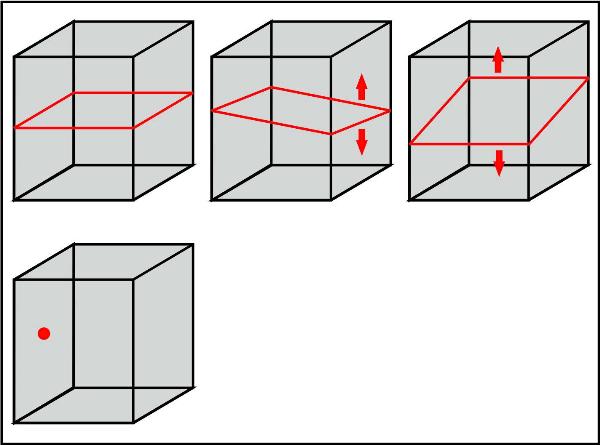

- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Delivery in the transport and storage system Systainer. Includes laser receiver with bracket, remote control, USB charging cable and USB charger.
- Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy. - Long operating time thanks to integrated battery pack.
- Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
The devices are individually tested and delivered with a calibration certificate. - Continuous operation with power supply via the charging socket
- Display of slopes by switching off the self-levelling function.
- Better visibility of the laser line through the adjustable rotation speed.
- Working in bright light and over long distances in conjunction with laser receivers.
Video
Specifications
|
|
Working area with laser receiver
|
500 m
|
|
|
Self-levelling range horizontal
|
5°
|
|
|
Levelling accuracy
|
1 mm / 10 m
|
|
|
Rotation speeds rpm
|
0, 60, 120, 300, 600
|
|
|
Remote control reception range
|
20 m, 360°
|
|
|
Operating time in hours
|
20 - 50
|
|
|
Operating temperature
|
-20°C - +50°C
|
Horizontal self-levelling by servomotors up to 5° inclination.
Manual tilting of the X and Y axis.
Working in bright light and over long distances in conjunction with laser receivers.
Can be used on tripods and wall mounts with 5/8" thread.
Delivery in the transport and storage system Systainer. Includes laser receiver with bracket, remote control, USB charging cable and USB charger.
